Rain begins on a city block. Water slides off roofs, runs along gutters and disappears through grates. Below the street, another flow was already present: the wastewater leaving buildings. In a combined sewer, the two meet.
The pipe has acquired a second job without receiving a second diameter. The interesting question is not simply whether rainwater looks clean at the curb. It is how the extra flow changes the work of a network already carrying wastewater toward treatment.
Follow the shared route
EPA’s combined-sewer explanation distinguishes a system carrying wastewater and stormwater together from separate sewer arrangements. During wet weather, the flow can exceed what the system or treatment facility can handle. Combined sewer overflows can then release a mixture that includes untreated wastewater into receiving waters.
That mixture matters. Rain may dilute some concentrations, but dilution is not the same as eliminating contaminants or treating sewage. A discharge’s environmental effect depends on more than the amount of water in the pipe.

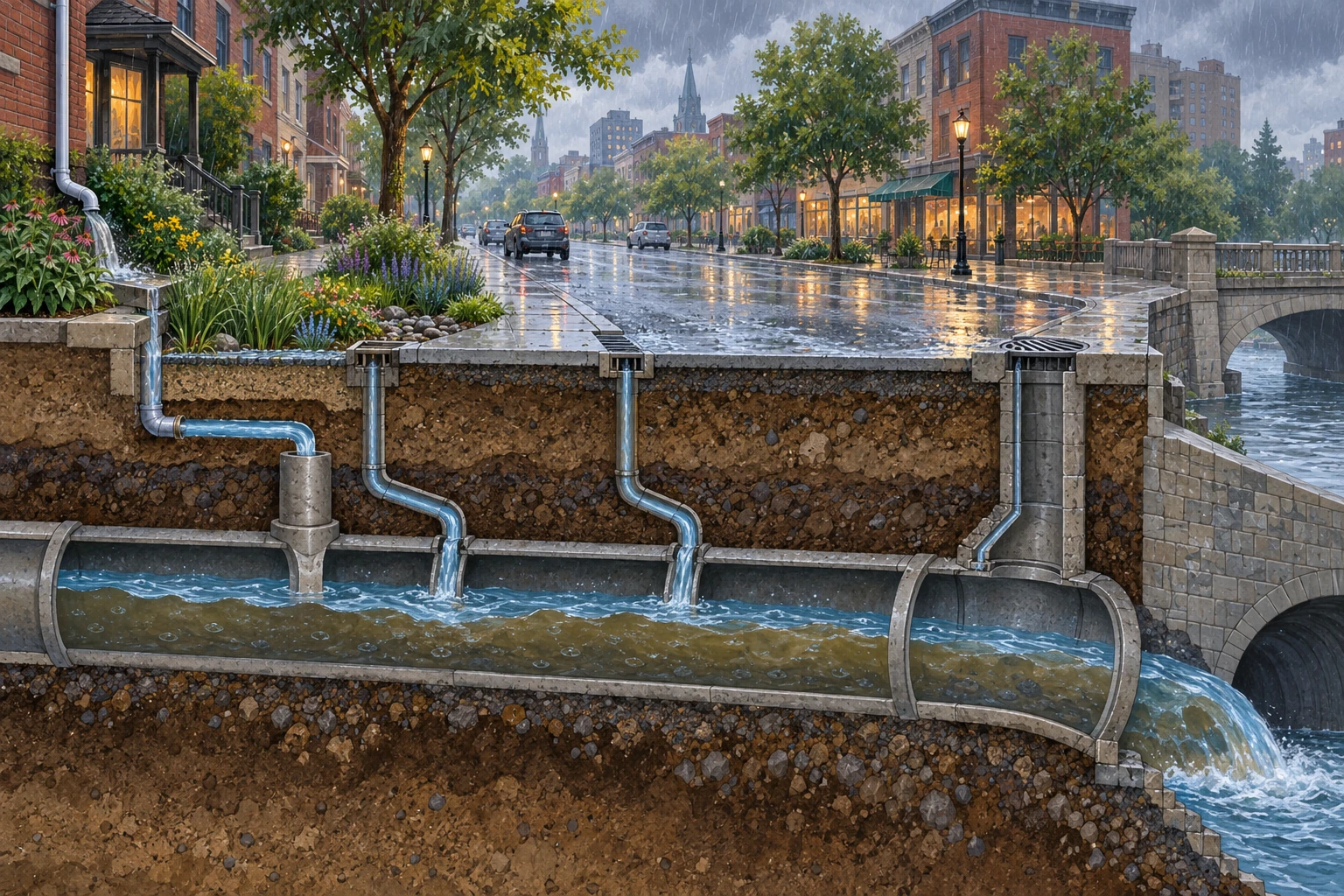

The illustration emphasizes runoff entering a shared conduit. It omits the regulator and treatment route, so it should not be used as a complete plumbing diagram. In a real city, maps and operator documentation establish which drains connect to which system.
A large tank buys time, not infinity
Use a fictional constant-flow example. Background wastewater arrives at 50 litres per second. The outgoing route can handle 150 litres per second. A storm adds 200 litres per second, giving a total inflow of 250. The excess rate is therefore 100 litres per second.
Ten thousand litres of initially empty spare storage can hold that excess for 100 seconds. After two minutes, the event has produced 12,000 litres of excess. The storage holds 10,000, leaving 2,000 beyond its capacity. These are invented teaching values, not a description of any city’s sewer.
When does temporary storage run out?
A transparent constant-flow budget separates incoming runoff, treatment capacity and spare storage.
Open when does temporary storage run out? in its own window.
Reduce the rain inflow to 100 litres per second. Combined with the background 50, the total equals the assumed outgoing capacity. In this ideal constant-flow model there is no excess to store. Then set rain inflow back to 200 and double the duration. The same peak now creates much more total excess.
Notice the assumptions behind the hundred-second answer. Storage begins empty, the added flow is constant and the outgoing capacity remains available. A partly full tank or a changing downstream condition would produce a different result. Reading those assumptions is as important as checking the subtraction, because real storms rarely behave like a flat input line.
Volume and timing are different levers
A storage tank can temporarily hold water and release it when capacity becomes available. A surface that keeps runoff from reaching the combined network can reduce the input. A measure that delays runoff may help with a peak while leaving a different total volume over a longer interval.
EPA’s guidance on green infrastructure and CSO control treats such measures as components of broader planning. A planted area is not automatically a complete solution. Location, soils, available space, maintenance and the actual network all affect the role it can play.
For a paper exercise, draw three columns: avoid entering the pipe, hold temporarily and increase conveyance or treatment capability. Put a rain garden, a storage tank and an expanded facility into the columns they most directly affect. Some projects touch more than one job. The exercise helps you ask what a proposal changes instead of sorting solutions by whether they look green or grey.
The city is not one uniform pipe
New York City’s Department of Environmental Protection explains its combined-system context and the relation between runoff and overflow. A city-level explanation can still contain neighborhoods with different arrangements. “This city has combined sewers” does not establish the connection of every individual grate.
A reader investigating locally can begin with the water authority’s system map, overflow information and public project descriptions. Look for the distinction between a combined overflow and a separate sanitary-sewer failure. Similar-looking water at an outfall can belong to different mechanisms and responsibilities.
Read a stormwater proposal with three questions
What flow or volume is the project designed to change? Under which storm assumptions was it modeled? What happens when the planned storage fills or the input exceeds those assumptions?
Then ask how the project will be maintained and how actual performance will be observed. A model describes conditions and rules. Monitoring tests whether the real system behaves as expected. Neither an attractive rendering nor a single dramatic storm photograph can answer all of those questions.
The underground pipe becomes easier to understand when rain is treated as a timed input rather than background scenery. A city manages not only where water goes, but how much arrives together and what room remains when it gets there.
Sources and further exploration: EPA: combined sewer overflow basics; EPA: green infrastructure in CSO control; New York City DEP: combined sewer overflows.
