The Music Disc Whose Pits Are Not Simply Ones and Zeros

Hold a music CD by its edge and its surface seems almost featureless. Tilt it and a rainbow arrives. Somewhere in that reflective object is an ordered account of sound, but the convenient story that “a pit means one and a flat place means zero” skips the part that makes the system readable.

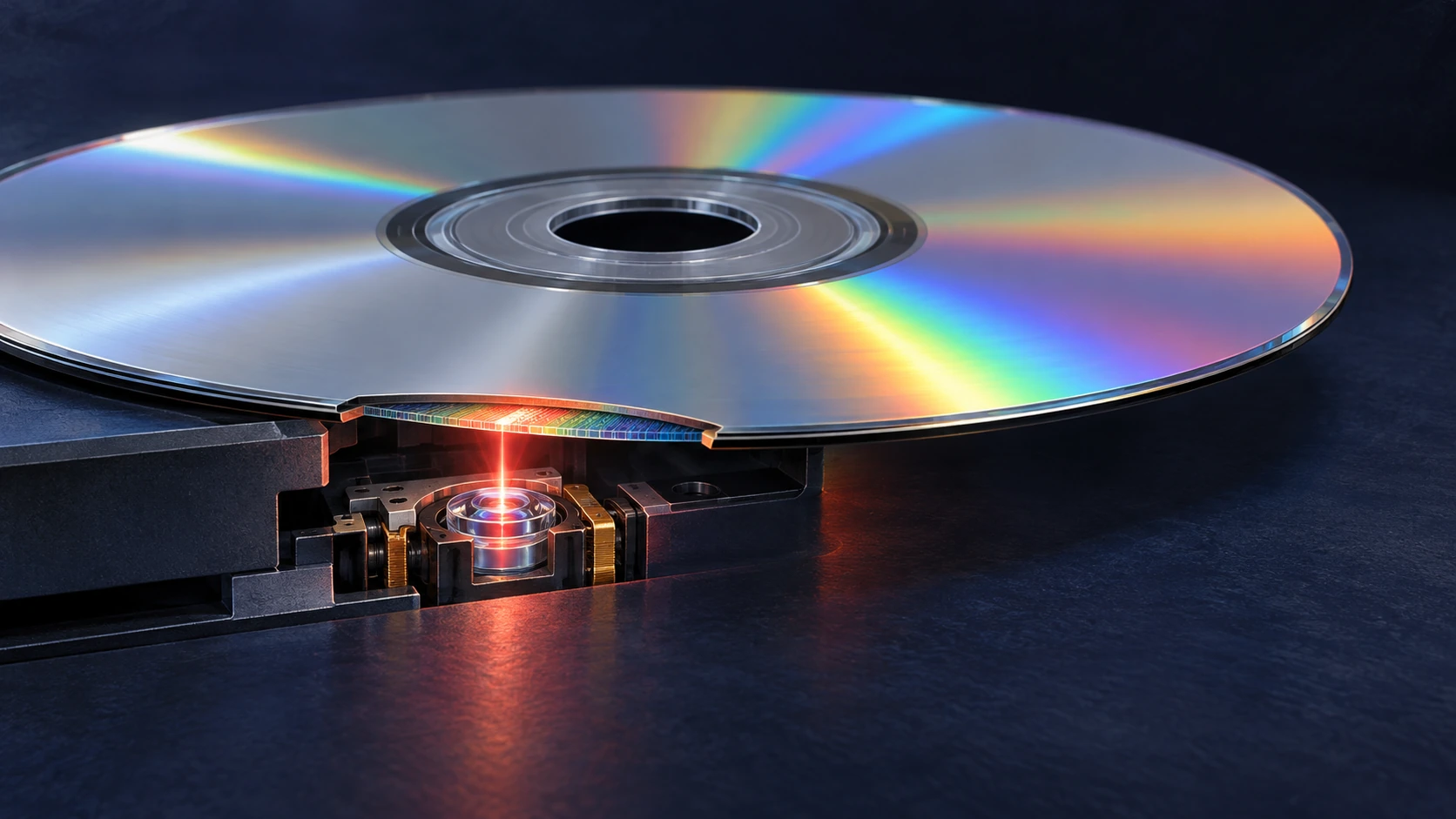

The pickup and light path are enlarged and shown in visible color for clarity; an actual CD reader uses near-infrared light.

A pressed compact disc is not a tiny vinyl record. Its microscopic relief does not imitate the shape of the original sound wave. A pickup reads changing reflected light, and a chain of decoding operations reconstructs digital information. The physical pattern is the beginning of that chain, not its final meaning.

A shape, an optical signal, and a code

The NIST optical-disc guide describes replicated discs whose pits and lands are molded into a polycarbonate substrate and covered by a reflective layer. The reader focuses laser light through the disc and detects the returning signal. Tracking follows a spiral rather than a stack of independent circular grooves.

Now separate three descriptions. The surface has physical relief. The pickup produces a varying electrical signal from reflected light. The electronics interpret that signal according to coding and timing rules. A feature at the first level does not automatically equal a user-data bit at the third.

Look for the change

In the channel recording described by ECMA-130, section 19.4, a channel ONE corresponds to a transition between pit and land, in either direction. A channel ZERO corresponds to no transition. A long pit can therefore contain several channel intervals without becoming a row of user-data ones.

Those are still channel bits. The standard's eight-to-fourteen modulation maps eight-bit values into fourteen-channel-bit patterns, with additional merging bits between them. The channel patterns restrict the spacing of transitions. Framing and error-correction information belong to the larger decoding process. Audio-CD details are specified separately, a distinction the CD-ROM standard itself makes.

Read a transition-coded toy track

Toggle bits and compare state versus transition; explicitly not a full EFM encoder.

Open read a transition-coded toy track in its own window.

Our small reader strips the problem down to one rule: a change at a clock boundary is a one; staying in the same state is a zero. Toggle a channel bit and watch what happens to all the physical states that follow. This demonstration is not a valid EFM encoder. It intentionally omits the run-length, synchronization, and error-correction requirements of a real disc.

A state is not the same thing as a transition. This enlarged track is an interpretive view, not a measured micrograph.

Try decoding this imaginary track

Start in a land state. At successive clock intervals the channel pattern is 10010001. The first one changes state to pit. The next two zeros keep the state unchanged. The next one changes it back to land. Work through the remaining intervals before revealing the result.

Reveal the state sequence

The successive states are pit, pit, pit, land, land, land, land, pit. There are three transitions. Saying “every pit is a one” would lose both their timing and the distinction between a state and a change of state. This short pattern illustrates transition decoding only; it is not a complete legal CD frame.

A homemade recordable disc is a different object

A CD-R uses a recording layer whose optical properties are changed during writing; a rewritable disc uses another recording technology again. These media are made to produce readable optical changes, but that does not make their internal construction identical to a molded, factory-pressed disc. The Canadian Conservation Institute's guide separates read-only, recordable, and erasable media.

This distinction helps when you look at an old collection. The format name, visible label, recording history, and ability to read the contents are different pieces of evidence. A shiny surface is not a complete condition report. Nor does success in one drive establish indefinite future readability.

A listening-room inventory with a better question

Choose three discs you own and record the format markings, any known recording date, and whether each currently reads in equipment intended for it. Keep an inventory of the contents where you can find it. Handle the discs as objects you want to keep, rather than scratching one to test an error-correction story.

The useful question is not simply “does it still look silver?” It is “can the intended information still be recovered, and do I have another appropriate copy?”

The remarkable achievement is coordination across scales. A microscopic relief pattern becomes a timed optical signal, a constrained channel code becomes recovered data, and data becomes something a listener recognizes as music. The disc can look silent and simple because the reader knows a great deal about how to interpret it.
